2014 Winkworth PV50

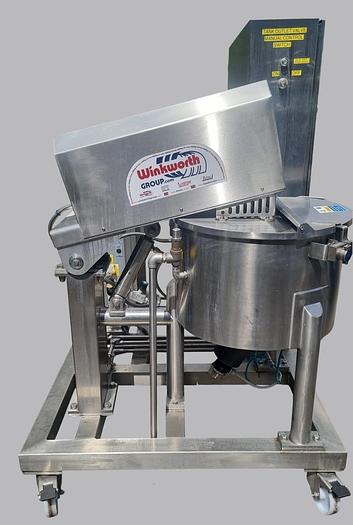

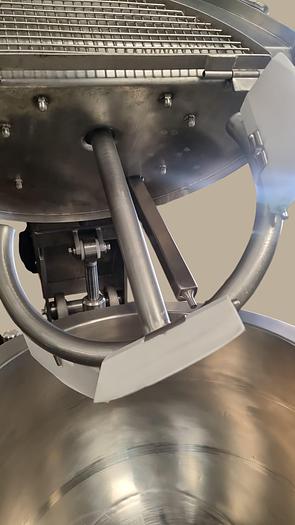

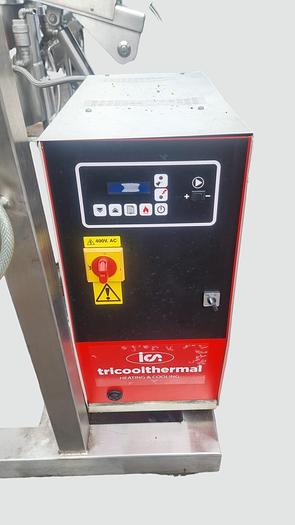

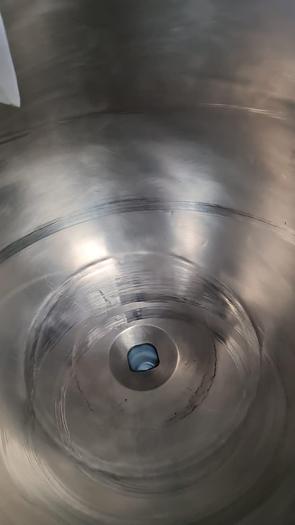

WINKWORTH PV50 Process Vessel, all stainless steel construction, 50 ltr capacity, jacketed vessel for oil heating and cooling. 500 ID x 330mm deep.   Vessel fitted with CBO and valve, HAAKE key interlock system, 1/3rd hinged inspection lid with safety grill. Gate type mixing paddle with hinged PTFE scrapers, paddle lift out, hinged via hand operated hydraulic pump. Tricoolthermal HTF150S-12 heating / cooling system.

Jacket - Design Pressure 3.5 Bar, Test Pressure 6.7 Bar, Design Temp 100°C

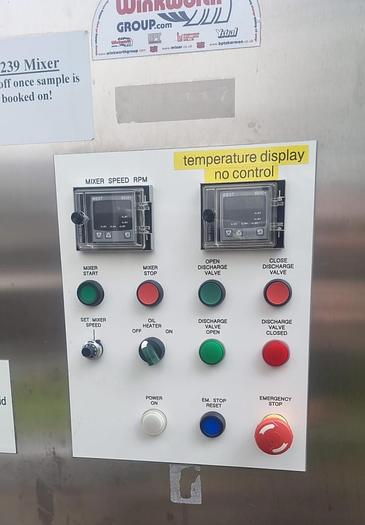

Skid mounted on 4 lockable castors with control panel, features:

Mixer Start / Stop

Mixer RPM display and variable speed control

Discharge valve Open / Close with indicator lights

Oil heater control with temperature display

Overall Dimensions:  1550 x 1250 x 1800 mm height.  Net weight 490 kg

Year of manufacture July 2014
